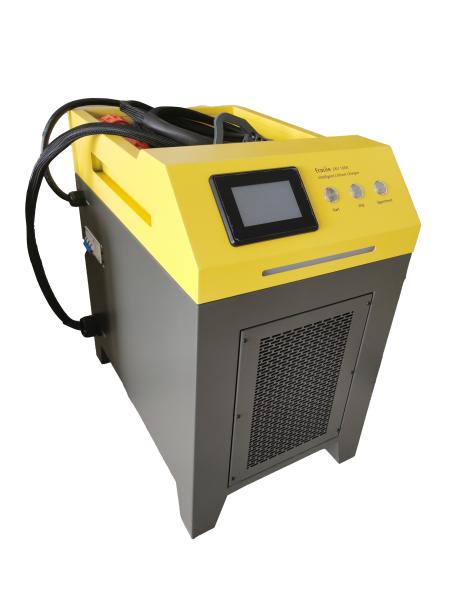

Forklift 24V 48V 100A Lifepo4 Charger Lithium Ion Battery Charger
with CAN communication
FEATURES
This series of chargers has high conversion efficiency,high voltage
regulation/current regulation accuracy,and small output current
ripple. Due to the use of high-frequency technology switches, the
charging machine is characterized by power saving, easy
control,wide range adjustment, small size and light weight.Reliable
quality. Long service cycle.
Protection function
overvoltage, overcurrent, overpower, overheating, undervoltage,short
ciruit,reverse connection.
| Basic Parameters |
| Voltage | 24V |
| Capacity | 100A |
| Weight | 40kg |
| Dimension(LxWxH) | 600x400x650mm |
| Input |
| Input Voltage Range | AC304V~AC456V |
| Input Limit Voltage | AC490V |
| Input Frequency Range | 50/60Hz |
| Power Factor | 0.99 |
| THD | 3.50% |
| Input Inrush Current | 10A(maximum) |
| Input Type | Three-phase three-wire +PE |
| Output |
| Output Voltage Range | DC18V~DC29.2V |
| Output Voltage Error | ±0.5% |
| Steady Voltage Accuracy | ±0.5% |
| Output Voltage Ripple Factor | ±1% |
| Maximum Output Current | 100A(Typical) |
| Output Current Adjustment Range | 1-100A |
| Output Current Error | ±1% |
| Steady Current Accuracy | 0.8 |
| Communicate | CAN |
Output connector
Output connector use 160A,150V Rema,Anderson or custom connectors.
Hefei ECOLTO Energy is a China leading manufacturer of highquality
lithium batteries, From cells to automated modules to PACK
production lines, we provide you with high-quality products. Wehave
our own intellectual property and full-automatic equipment, to meet
different customization needs, and provide you with a onestop
service.
We have our own production workshop. We develop and produce
everything from battery cells to Pack assembly. We have been in
this industry for more than ten years. We serve every customer with
a reliable, trustworthy and pragmatic attitude.
Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be
charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design
of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
