25.6V 100Ah LiFePO4 Battery Rechargeable Lithium Batteries BMS
Built-In For RV Boats Outdoor Camping Custom
Battery Features:
Lithium Iron Phosphate(LiFePO4).The Safest Lithium Technology.Built-in automatic protection function to prevent overcharging,
overdischarging, overcurrent and overheating. Light weight: about 40%~50% of the weight of lead-acid batteries. Support for series application extensions
(up to 51.2V) and two parallels. High Capacity and Efficiency.Reliable and Long-lasting.Easy
Installation and Maintenance.
Performance:
25.6V 100Ah lithium battery manufactured by Automotive Grade
LiFePO4 Cells with higher energy density, more stable performance
and
greater power. Excellent cycle performance, fast charging and
discharging, charging efficiency up to 100%, and high output power.
Without memory effect, no matter what state the battery is, it can
be used as soon as it is charged. Supporting expansion for up to 2
series & 4 parallel and suitable for electric energy storage.
Our LiFePO4 lithium iron batteries provides 4000+ cycles compared
to 300~500 cycles in lead acid battery. The service life of LiFePO4
batteries is 8 to 10 times than the standard lead-acid batteries.
Helping to minimize replacement cost and reduce total cost of
ownership. And the weight of the lithium iron phosphate battery is
30% lighter than the lead-acid battery of the same capacity, so you
can carry it more easily.
The stable Lithium Iron Phosphate chemical structure makes LiFePO4
battery not burn or explode even at high temperature, short
circuit, impact and drop. Highest-level safety based on UL Testing
Certificate for the cell inside the battery. And it does not
contain any heavy metals and rare metals and is more
environmentally friendly, which called green battery.
With no acid in the lithium ion battery, you're able to safely
mount in any position. This makes li-ion batteries perfect for marine, RV, campers, travel trailer, outdoor camping custiom and
off-grid applications!

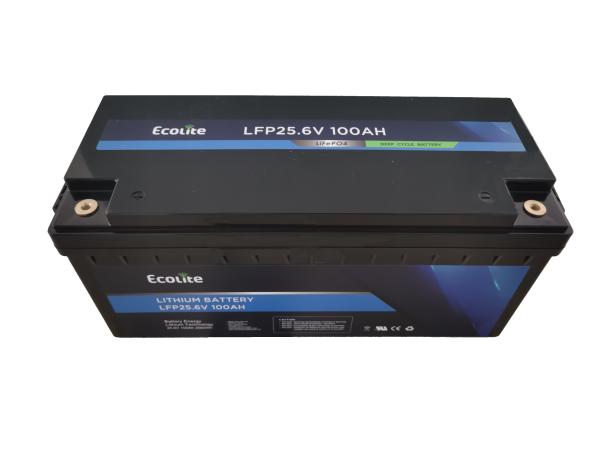

Three views of product:
| Electrical Parameters | Mechanical Parameters |
| Nominal Voltage | 25.6V | Dimension(W×D×H) | 507×201.5×215mm |
| Rated Capacity | 100Ah | Dimension(W×D×H) | 19.96×7.93×8.46'' |
| Nominal Energy | 2560Wh | Weight | 23kg |
| Internal Resistance | ≤45mΩ | Terminal Type | M8 |
| Efficiency | ≥0.98 | Battery Housing | ABS |
| Cycle Life | ＞4000cycles@1C,80%DOD | Housing Protection | IP65 |
| Self Discharge | ＜5%per Month | Cell Type | LiFePO4 Cell |
| Max.Modules in Series/parallel | 8S/1p | Communication | Bluetooth |
| Discharge Parameters | Charge Parameters |
| Continuous Discharge Current | 100A | Charge Method | CC-CV |
| Pulse Discharge Current | 150A(＜10s) | Charge Voltage | 28.4~29.2V |
| Recommended Volt.Disconnect | 20V | Recommended Float Voltage | 26.6~26.8V@100% |
| BMS Discharge Cut-off Voltage | 20V | Recommended Charge Current | 50A |
| Reconnect Voltage | 21.6V | Maximum Charge Current | 100A |
| Short Circuit Protection | 300-800us | BMS Charge Cut-off voltage | 29.6V |
| Temperature Parameters | | |
| Discharge Temperature | -20℃ to 60℃ | | |
| Charge Temperature | 0℃ to 55℃ | | |
| Storage Temperature | -20℃ to 60 ℃ | | |
| BMS High Temperature Cut-off | 65℃ | | |
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be
charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design
of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
Fill out our short form and we will be contacting you shortly to
see we how can provide a solution to your needs!
