    22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating

    Ask Lasest Price
    Brand Name : Ecolite
    Model Number : ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah
    Certification : UN38.3 MSDS CE
    Price : Inquiry
    Payment Terms : L/C, T/T
    Supply Ability : 5000 units/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    22000 Cycle Life LTO Lithium Titanate Battery 48V 27Ah IP65 Ingress Rating

    ECOLTO-4827 Lithium Titanate(LTO)48v 27Ah

    Application


    Start a Free Product Chat

    ECOLTO Battery-4827

    Lithium Titanate(LTO)48v 27Ah

    Cutting edge battery delivering market-leading technology and economic savings.

    Lifetime Solution

    The Ecolto battery lasts for 22,000 cycles and has a tough weatherproof aluminum case providing a lifetime energy storage solution.

    Superior Performance

    Each Ecolto Battery provides 1.93kWh of energy storage. Superior cycling performance allows 3 cycles a day to take full advantage of your energy production and off peak energy pricing plan.

    Smart Design

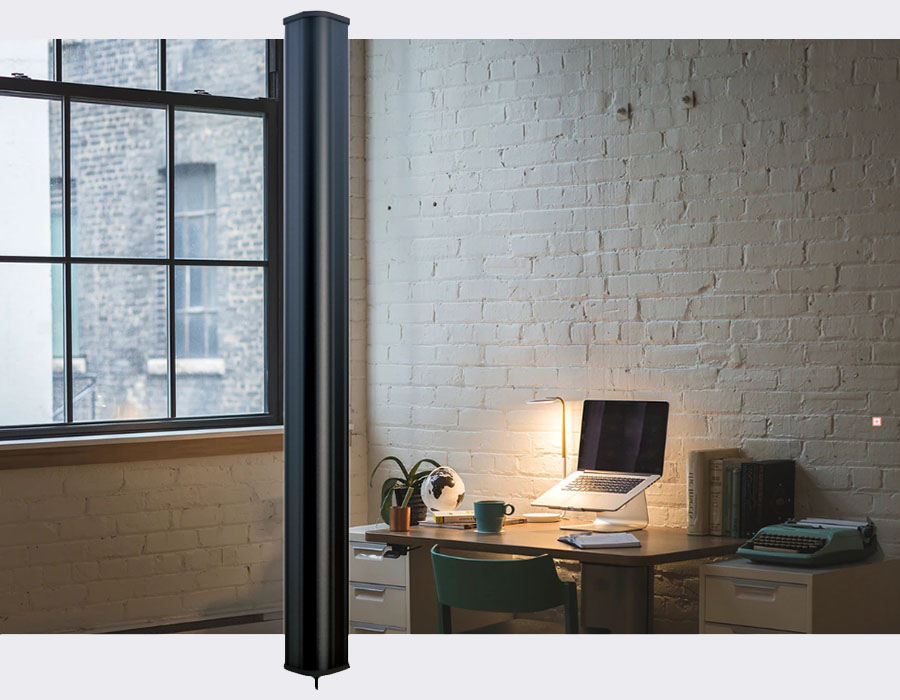

    Simple inside or outside installation, easily mounted on a wall, with a space efficient design and modern aesthetics (comes with mounting brackets).

    Easy system Expansion

    Horizontal mount


    Simple lock security

    Vertical mount


    SPECIFICATION

    Start a Free Product Chat

    SpecificationECOLTO Battery-4827
    Nominal Capacity (25°C ± 5°C)1.93KWh (40Ah)
    ChemistryLithium Titanate (LTO)
    Dimensions (Height x Width x Depth)1600 x 155 x 145 mm1635 x 155 x 145 mm
    Nominal Voltage48.3V48.3V
    Charge Cut-off Voltage (Bulk/Absorption Voltage)*55.5V56.5V
    Float Voltage*54.5V55.5V
    Discharge Cut-off Voltage (Low Cut-off Voltage)*42V42V
    Low Restart Voltage (Reconnect Voltage)*46V44.6V
    Mass36kg
    Max Continuous Charge /Discharge Current (25°C ± 5°C)50A (1.25C)
    Max Pulse Charge/Discharge Current (10s, 25°C ± 5°C)120A (3C)
    Battery Management SystemInternal cell balancing,
    Over-current trip    		Internal cell balancing, failure detection
    and trip. Under-Voltage, Over-Voltage,
    Over-current, Over-Temp, Under-Temp
    protection and trip
    Isolation & Distribution Block Requirement50A per battery connected in parallel
    Operating Temperature-40°C to 60°C (recommended 5°C to 35°C)
    Storage Temperature-5°C to 35°C
    Cycle Life (1C, 25°C ± 5°C)22,000
    Depth of Discharge100%
    Round Trip Efficiency(1C, 25°C ± 5°C)96%
    Ingress RatingIP65
    InstallationIndoors or outdoors
    Connections8mm² (8 AWG) (Ø3mm) wire per pole
    Warranty20 Years or 22,000 cycles,whichever comes first,see warranty document for details

    Battery Name

    Ecolto-4827

    Technology Class

    Lithium Titanate (LTO)

    Nominal Voltage

    48.3 V

    Number of Battery Modules

    5

    Maximum Continous Discharge Rate

    2. 4kW (per battery module) (1 .25C)

    Rated Capacity (@ 100% DOD)

    1.93 kWh

    Recommended DOD

    100%

    Weight

    36 kg (per battery
    module)

    Size

    36 L (per battery
    module)

    0

    kW

    Idle

    74% SOC
