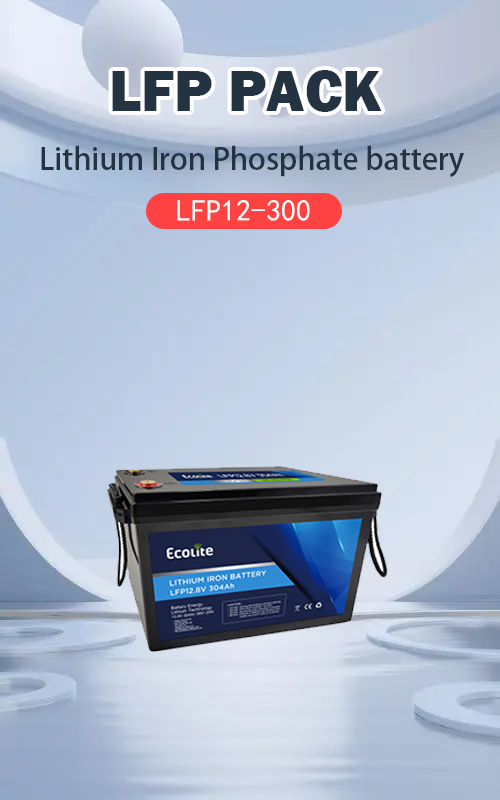

LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4)

Specifications:

Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(WxDxH)	345x190x245mm
Rated Capacity	304Ah	Dimension(WxDxH)	13.58x7.48x9.65
Energy	3891.2Wh	Weight	26kg
Resistance	≤30mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	250A	Charge Method	CC-CV
Pulse Discharge Current	400A(<10S)	Charge Voltage	14.2-14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	150A
Reconnect Voltage	10.8V	Maximum Charge Current	250A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Valtage	14.8V
