Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System

HEFEI ECOLITE ENERGY CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System from wholesalers

    Buy cheap Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System from wholesalers
    • Buy cheap Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System from wholesalers

    Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System

    Ask Lasest Price
    Brand Name : Ecolite
    Model Number : 12V 5Ah
    Certification : UN38.3 MSDS CE
    Price : Inquiry
    Payment Terms : L/C, T/T
    Supply Ability : 5000 units/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

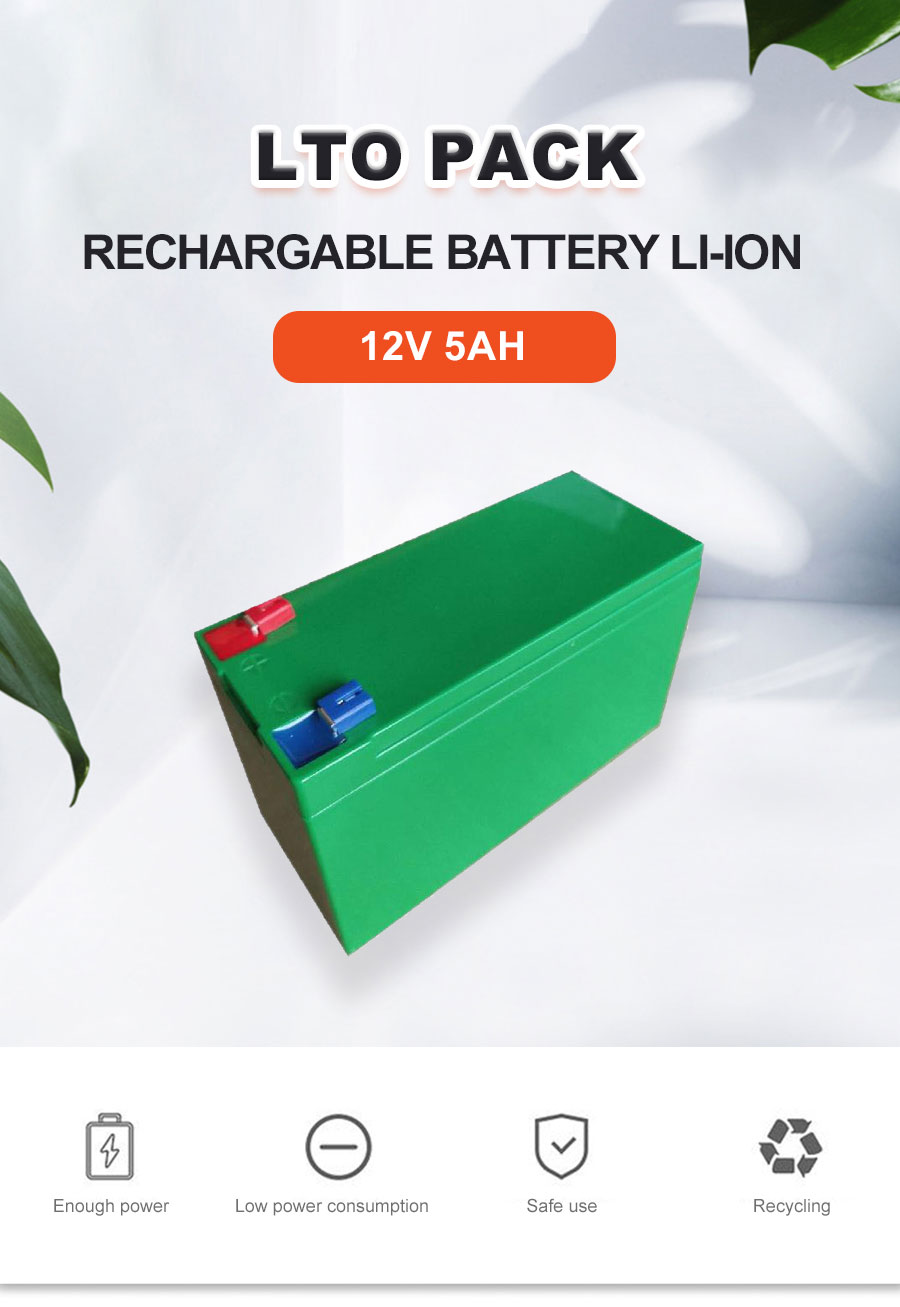

    Rechargable 12v 5ah LTO Lithium Ion Battery For Video Monitoring System


    Rechargable Battery 12v 5ah Li-Ion LTO Pack For Video Monitoring System


    Electrical Parameters
    Nominal Voltage12V
    Rated Capacity5Ah
    Energy50Wh
    Resistance≤65mΩ
    Efficiency0.99
    Cycle Life>2000cycles @1C,80% DOD
    Self Discharge2% per Month
    Max. Modules in Series/Parallel4S/3P

    Mechanical Parameters

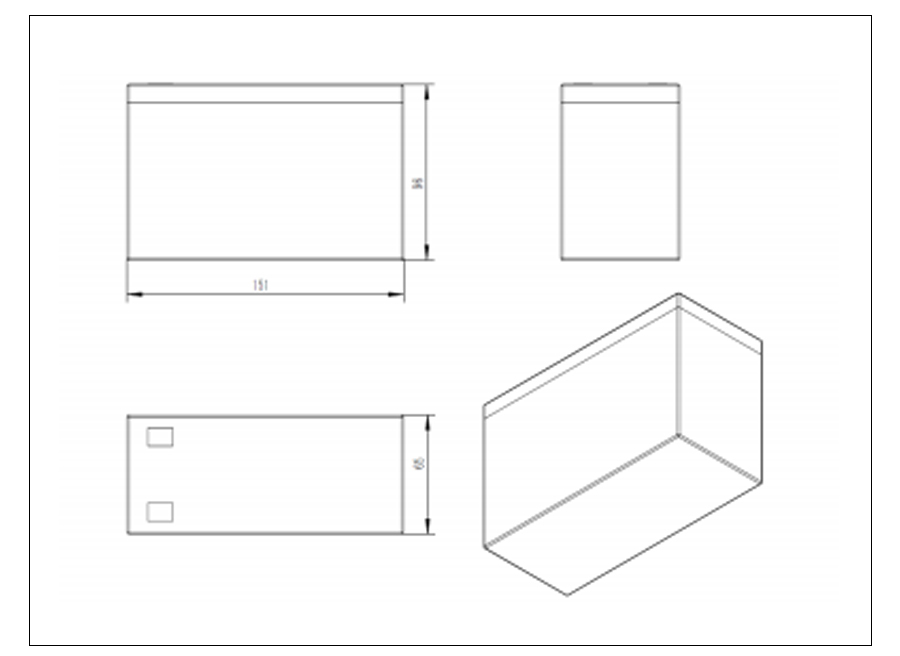

    Dimension(L×W×H)151×65×94mm
    5.94×2.56×3.7in
    Weight1kg
    Terminal TypeT1
    Battery HousingABS
    Housing ProtectionIP56
    Cell Type-ChemistryLTO Cell
    SOC Display(Optional)/

    Discharge Parameters
    Continuous Discharge Current25A
    Pulse Discharge Current50A(<1S)
    Recommended Volt. Disconnect8.5V
    BMS Discharge Cut-off Voltage8.5V
    Reconnect Voltage9V
    Short Circuit Protection250-500us

    Charge Parameters
    Charge MethodCC-CV
    Charge Voltage14.4~14.8V
    Recommended Float Voltage13.75V
    Recommended Charge Current2A
    Maximum Charge Current12A
    BMS Charge Cut-off Voltage15V

    Temperature Parameters
    Discharge Temperature-40 to 75 ℃
    Charge Temperature-40 to 75 ℃
    Storage Temperature-40 to 75 ℃
    BMS High Temperature Cut-off78 ℃

    NOTE: Do not Mix With Sealed Lead Acid Batteries When Recycling.
    See Ecolite User's Manual for Proper Operation.

    Q :Do you provide free sample ?
    A: Yes, a few pcs free sample can be provided, but freight will be charged

    Q: what is the warranty?
    A: one year

    Q:What is your payment term ?
    A: T/T,L/C

    Q:do you accepte OEM order ?
    A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack

    Q :How many cells you can produce per month?
    A: 1.8million

    Q :What is the mode of transport?
    A: usually by sea

    Q:Which certificates do you have
    A:We have un38.3,MSDS…etc.
