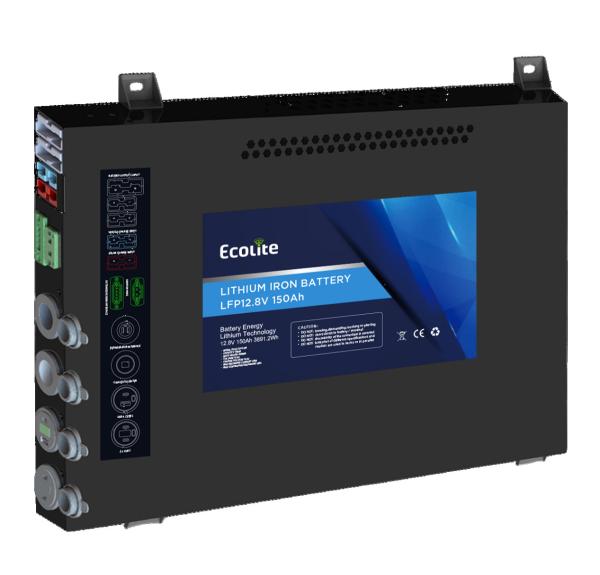

LFP 12.8V 150Ah 12 Volt Lithium Battery Pack For RV Motorhome Camper Solar Outdoor

Ask Lasest Price
Brand Name :	Ecolite/OEM/ODM
Price :	Inquiry
Payment Terms :	L/C, T/T
Supply Ability :	5000 Units per month
Delivery Time :	1-2 months
Model Number :	SLIMLINE150
Certification :	UN38.3 MSDS CE

Add to Cart

Product Details
Company Profile

LFP 12.8V 150Ah 12 Volt Lithium Battery Pack For RV Motorhome Camper Solar Outdoor

SLIMLINE LFP12.8V 150Ah 12V Lithium Battery Pack For RV Motorhome Camper Solar Outdoor

PERFORMANCE:
SLIMLINE 150 sampling lithium iron phosphate battery cell, with built-in intelligent BMS, has characteristics such as long service life, light weight, high discharge current, wide temperature range, fast charging, maintenance free, safety and environmental protection.At the same time, it has multiple charging and discharging interfaces,supporting three charging methods: car generator,photovoltaic panel, and city power. lt is a multi- functional power supply, making it easier to use and more convenient.

Electrical Parameters
Nominal Voltage	12.8V
Rated Capacity	150Ah
Energy	1920Wh
Resistance	≤30mΩ
Efficiency	≥0.98
Cycle Life	>4000cycles @0.5C,80% DOD
Self Discharge	<5% per Month
Max. Modules in Series,Parallel	4S/1P

Mechanical Parameters
Dimension(LxWxH)	615x445x60mm
Dimension((LxWxH)	24.12x 17.52x 2.36
Weight	25Kg
Terminal Type	Reference connector parameters
Battery Housing	SPCC
Housing Protection	IP30
Cell Type-Chemistry	LiFePO4 Cell
Communication	Bluetooth

Charge Parameters
Charge Method	CC-CV
Charge Voltage	14.2~14.6V
Recommended Float Voltage	13.3~13.4V@100%
Recommended Charge Current	/
Maximum Charge Current	150A
BMS Charge Cut-off Voltage	14.8V

Discharge Parameters
Continuous Discharge Current	150A
Pulse Discharge Current	230A(<1S)
Recommended Volt. Disconnect	10V
BMS Discharge Cut-off Voltage	10V
Reconnect Voltage	10.8V
Short Circuit Protection	300-800us

Connector
Anderson 50A(Blue)	Alternator,DC11.5~16V,Max40A
Anderson 50A(Red)	Solar,DC11.5~DC50V,Max40A
Anderson 175A(Grey)	DC10~DC14.6V,Max150A
Anderson 50A(Grey)	DC10~DC14.6V,Max50A
CigaSocketr	DC10~DC14.6V,Max10A
Anderson 175A(Grey)	DC10~DC14.6V,Max10A
USB-A+USB-C	18W+65W
USB-Cx2	45W
2P Wiring Terminal	IGNITION
4P Wiring Terminal	Display screen

Temperature Parameters
Discharge Temperature	-20℃ to 60℃
Charge Temperature	0℃ to 55℃
Storage Temperature	-20℃ to 60℃
BMS High Temperature Cut-off	65℃
