LiFePO4 Lithium Battery 48V20Ah For Household / Commercial Back Energy

Ask Lasest Price
Brand Name :	Ecolite/OEM/ODM
Price :	Inquiry
Payment Terms :	L/C, T/T
Supply Ability :	5000Units per month
Delivery Time :	1-2 months

Add to Cart

Product Details
Company Profile

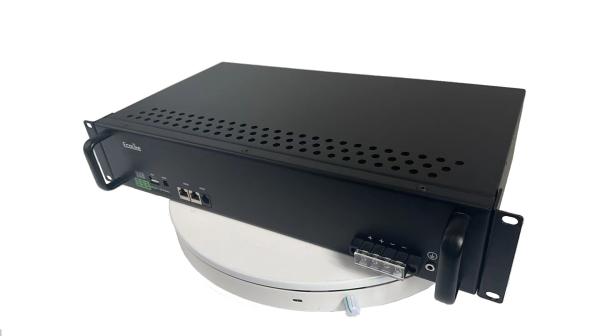

LiFePO4 Lithium Battery 48V20Ah For Household / Commercial Back Energy

Ecolite LiFePO4 Lithium Battery 48V20Ah For Household/Commercial Back Energy
FEATURES:
Lithium lron Phosphate(LiFePO4)
The Safest Lithium Technology.
Integrated Battery Management System(BMS)
Support multiple parallel connections.

PERFORMANCE:
Long Cycle Life>2000cycles@80%DOD.
High Density,High Discharge Current,High Tempera-ture Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.

SPECIFICATIONS:

Electrical Parameters		Mechanical Parameters
Nominal Voltage	48V	Dimension(WxDxH)	442x245x88mm
Rated Capacity	20Ah	Dimension(WxDxH)	17.4 x 9.64x3.464
Energy	960Wh	Weight	13kg
Resistance	≤30mΩ	Terminal Type	M4
Effciency	≥0.98	Battery Housing	SPCC
Cycle Life	>2000cycles @1C,80% DOD	Housing Protection	IP30
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	15S/3P	Communication	RS485/RS232

Discharge Parameters		Charge Parameters
Continuous Discharge Current	20A	Charge Method	CC-CV
Pulse Discharge Current	25A(<10S)	Charge Voltage	53.25-54.75V
Recommended Volt. Disconnect	37.5V	Recommended Float Voltage	50.6~51.75V
BMS Discharge Cut-off Voltage	37.5V	Recommended Charge Current	10A
Reconnect Voltage	40.5V	Maximum Charge Curent	20A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	54.75V

Temperature Parameters
Discharge Temperature		-20℃ to 60℃
Charge Temperature		0℃ to 55℃
Storage Temperature		-20℃ to 60℃
BMS High Temperature Cut-off		60℃
